Introduction

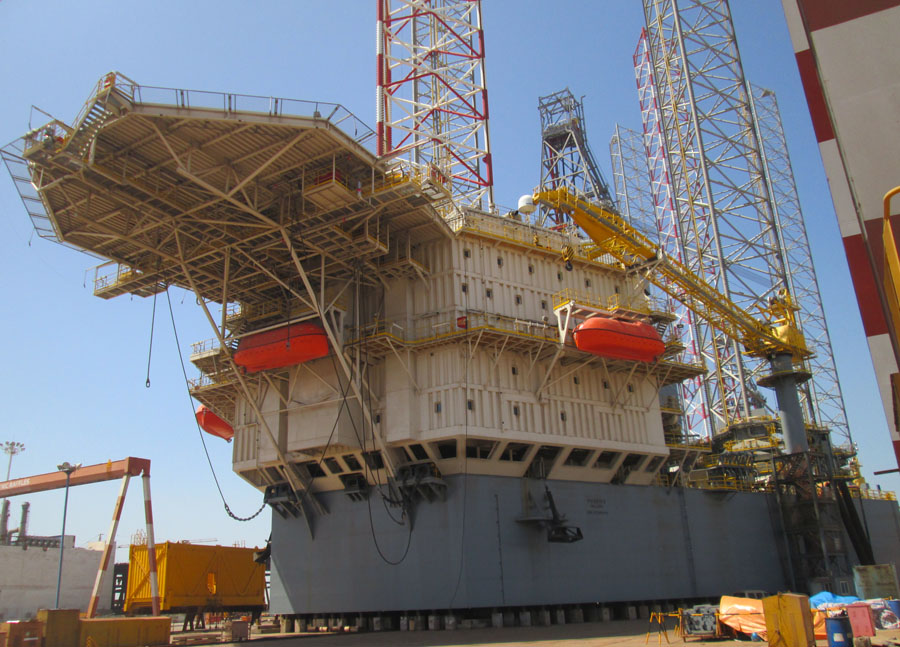

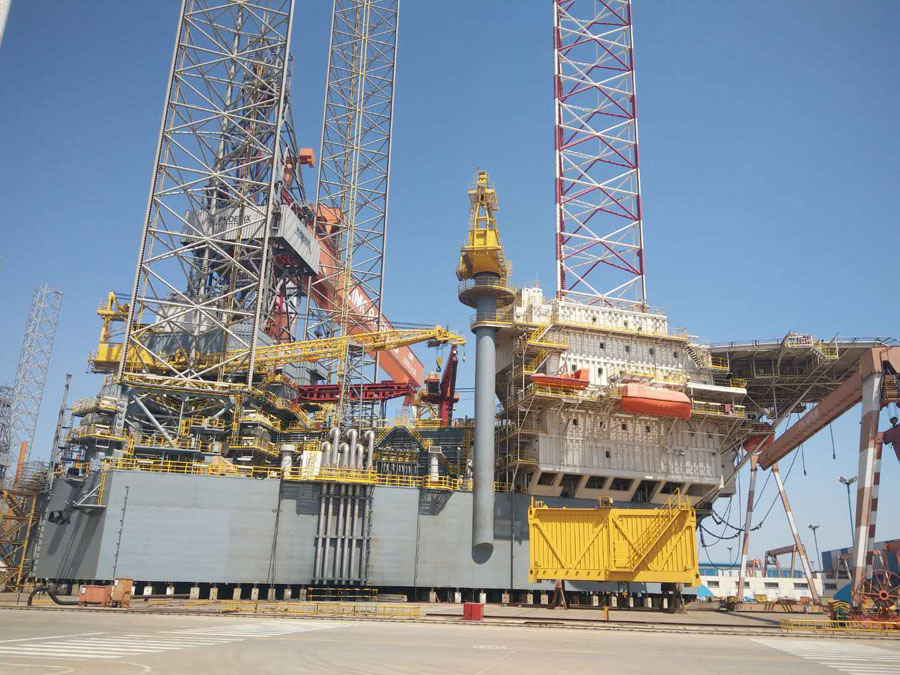

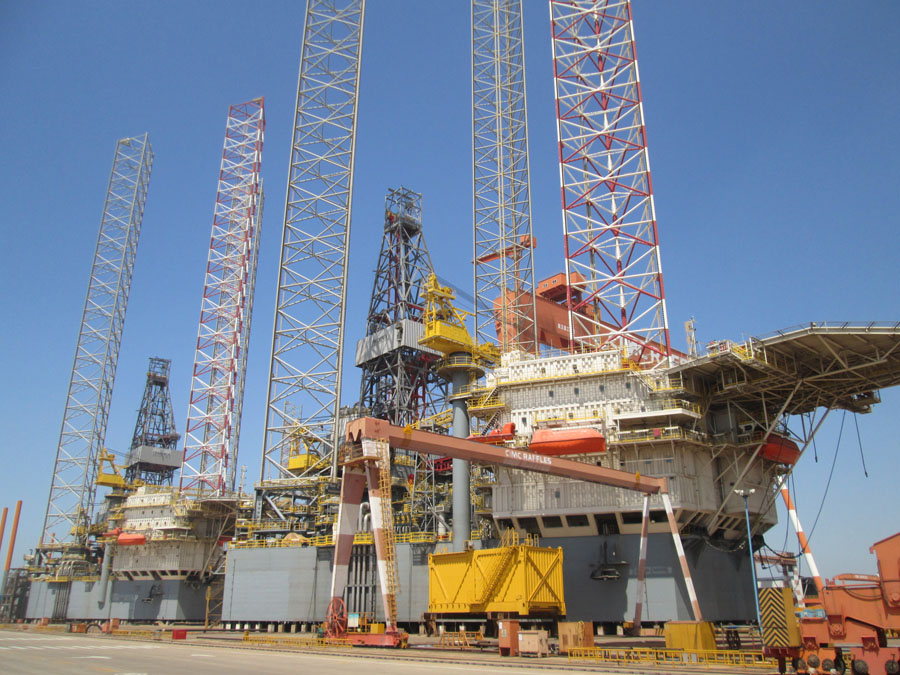

Gulf Driller VI (JU2000E Design) Jack-up Drilling Rig is designed by an American design company-F&G. It is able to operate at water depth up to 120m(400ft) and drill wells down to 10668m(35000ft) at-20℃. It can be operated on extreme environment.
Main Particulars
Length Overall：70.358m
Breadth：76m
Depth：9.45m
No of legs： 3
Accommodation：150men
Helideck ：Sikorsky S61N & S-92
Woking Water Depth：120m
Drilling Depth：10668m
Main Facility
Main Generator：6x1,913 KVA
Jacking System：NOV-BLM integrated
Deck Crane： 3x60 mt
Drilling Package
Derrick：907mt
Top Drive：907mt
Mud Pump：3x2,200hp
Class：ABS
